Components in your box

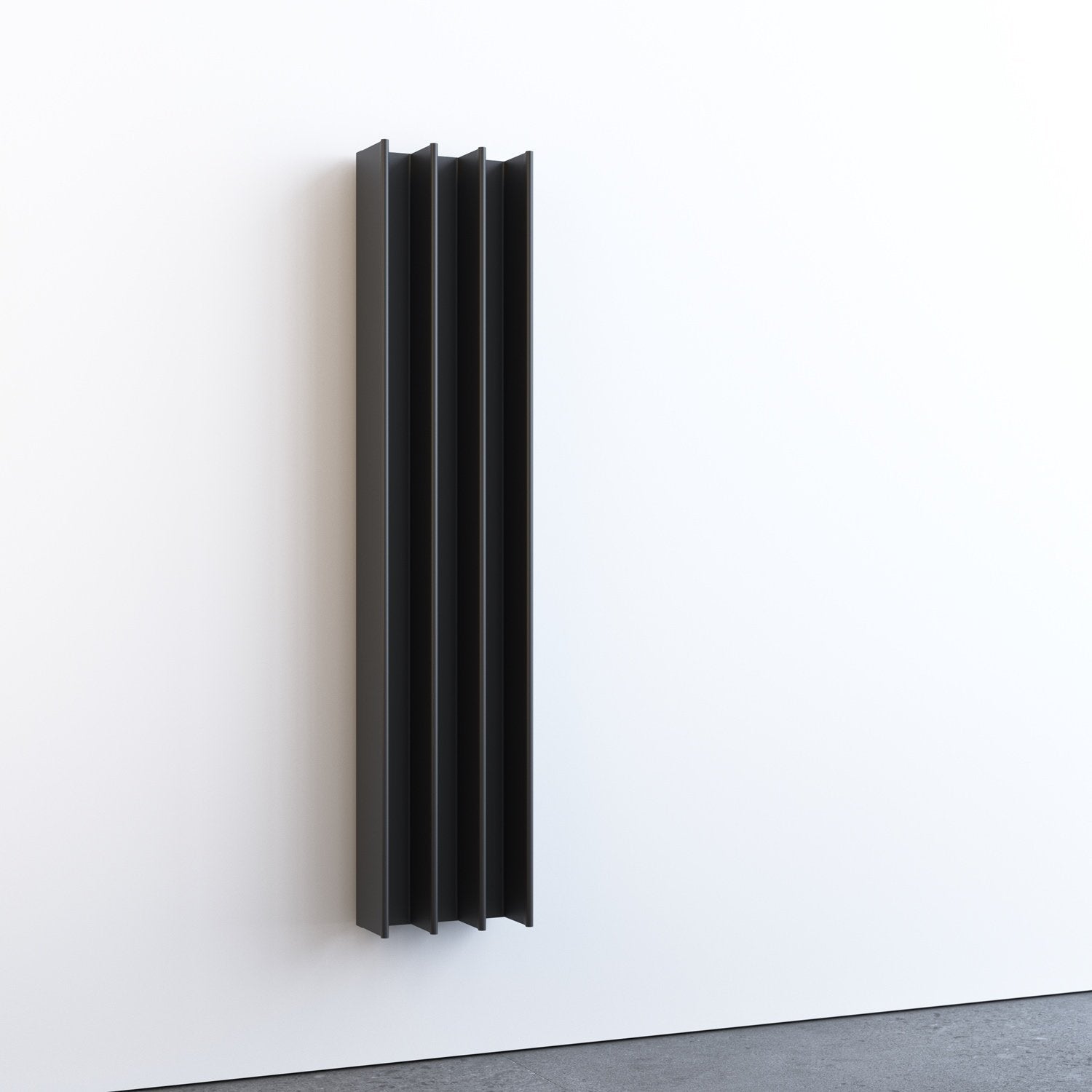

- Gordon Towel Warmer

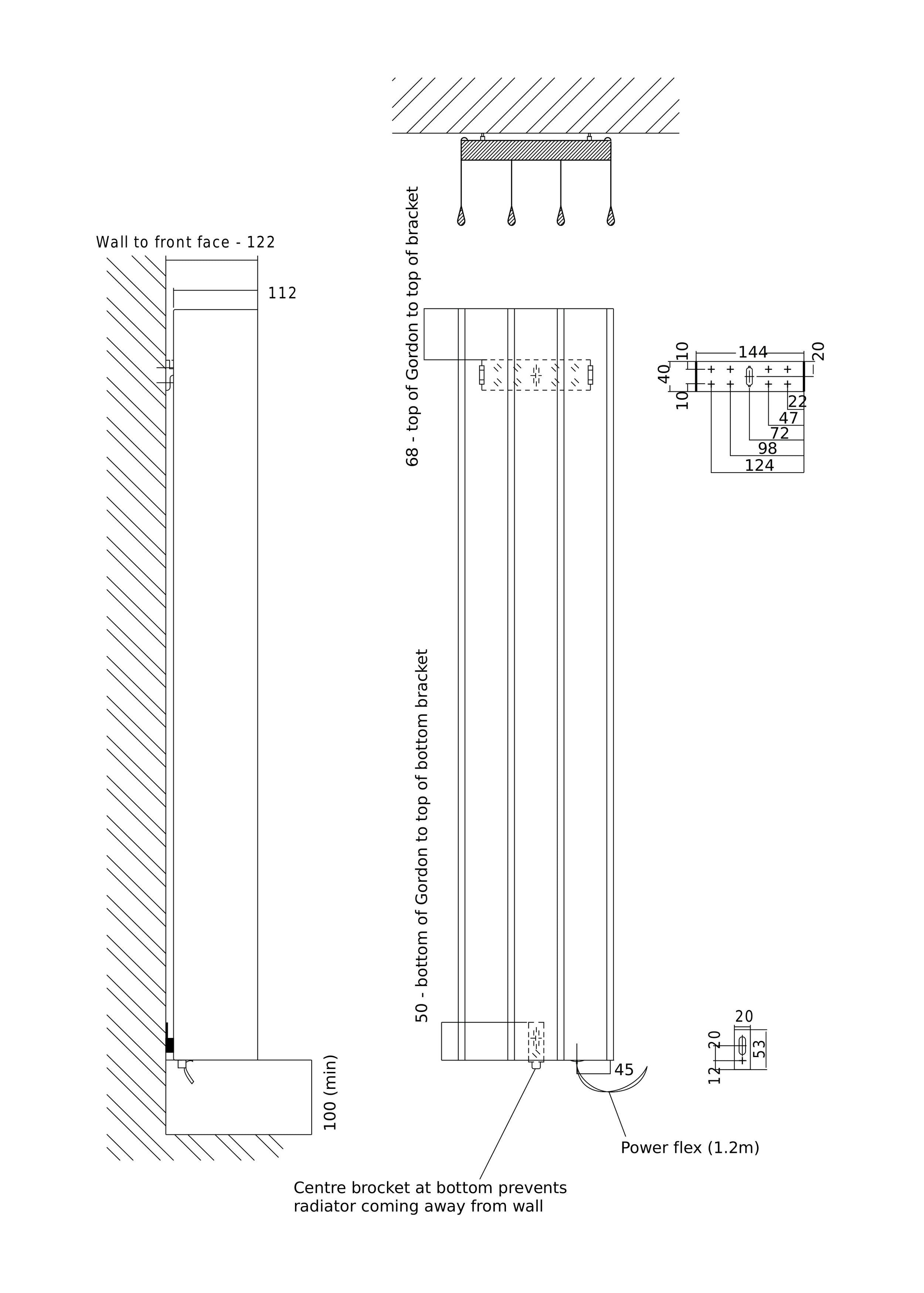

- Main wall mounting bracket

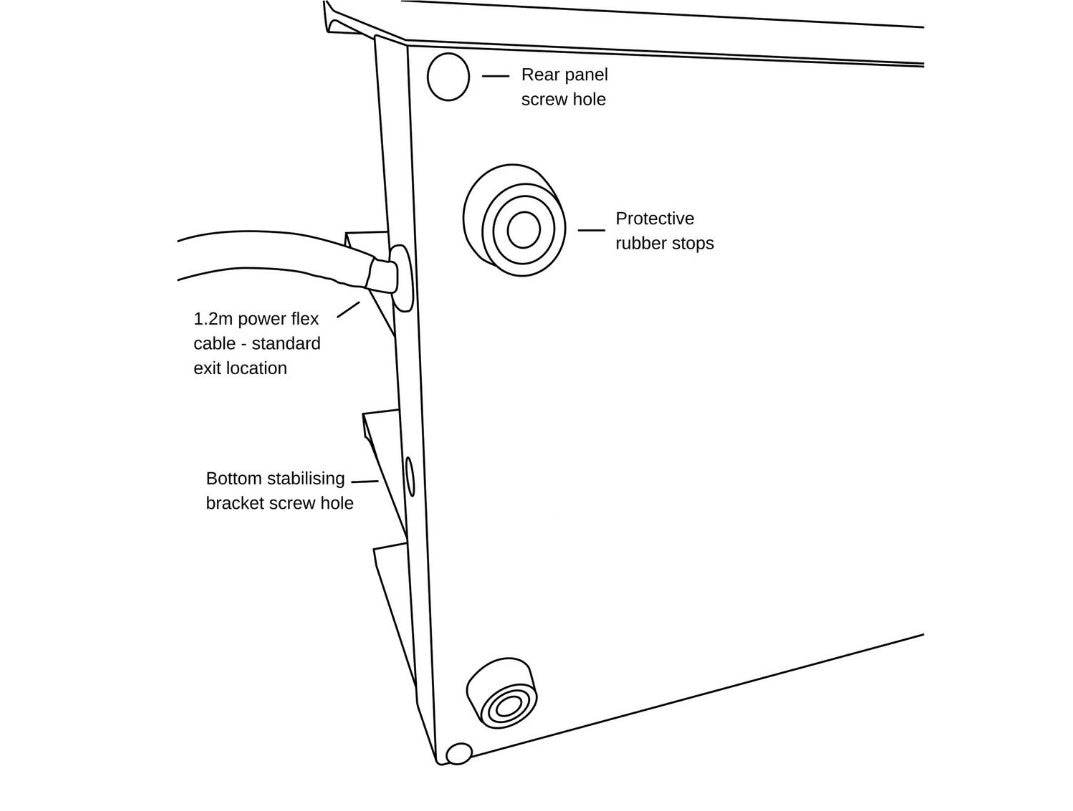

- Centre bottom bracket
- Screws
- Wall Plugs
Tools Required -
- Tape Measure
- Electric Drill
- Screwdriver or electric driver with PZ2 driver bit
- 7mm Masonry drill bit to suit wall plug or screw size (Eskimo brackets will take screws up to 7mm in diameter)
This Product must be installed by a suitably qualified competent person as defined by the relevant standards in the country of installation. This is a fixed appliance
WARNING – This appliance must be earthed
The electrical installation of this towel rail must be carried out by a competent electrician following the current Regulations for Electrical Equipment. The towel rail is suitable for use on an A.C.~ electrical supply. Before installation, check that the supply voltage corresponds with that marked on the rail.
IMPORTANT – The wires in the mains lead are coloured following the following code:
- BLUE – NEUTRAL
- BROWN – LIVE
- GREEN/ YELLOW – EARTH
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
This appliance must only be used on A.C. mains supply of 220/240 Volts~.
